MaptunerX Diagnostic System for Sea Doo Available Now!!!

[delonnelj]

Will this work on my seadoo 2012 230SP boat? Performance Mapping and maintenance?

[Green Hulk]

Will this work on my seadoo 2012 230SP boat? Performance Mapping and maintenance?

yes, it works on all the Rotax engines whether they are in a boat or personal watercraft.

[Merritt]

can Celsius be changed to Fahrenheit on X handheld for live monitoring?

[JESUS G]

can Celsius be changed to Fahrenheit on X handheld for live monitoring?

Yes,

In the main screen in Maptuner device, go to "Information"

then click on "Units"


Then select if you want to display in Celcius or Farenheit

[Snyper]

Yes,

In the main screen in Maptuner device, go to "Information"

then click on "Units"


Then select if you want to display in Celcius or Farenheit

Will we ever be able to monitor knock through this app?

[Green Hulk]

Will we ever be able to monitor knock through this app?

Not through the diagnostic app, for monitoring knock, and all other engine parameters you need the data logging kit

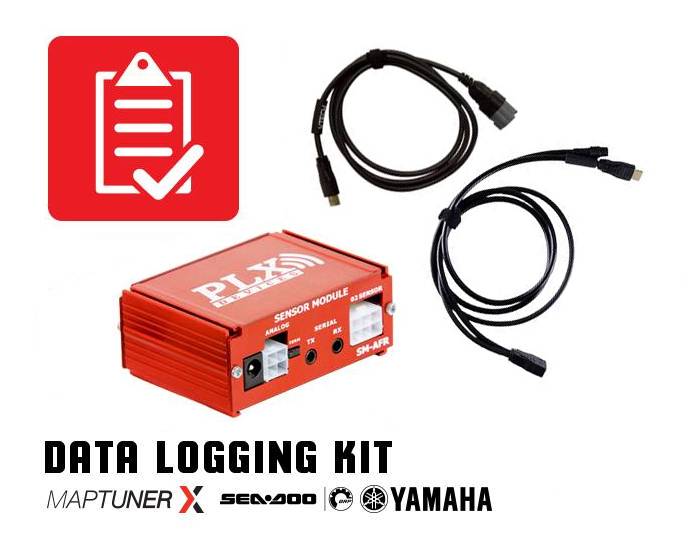

MaptunerX Data Logging Kit This kit contains everything you need to log and analyze valuable information from your YAMAHA & BRP vehicles with your Maptuner X. Application will...

RY11UNI-LOG-KIT

$479.85

[Snyper]

Not through the diagnostic app, for monitoring knock, and all other engine parameters you need the data logging kit

MaptunerX Data Logging Kit This kit contains everything you need to log and analyze valuable information from your YAMAHA & BRP vehicles with your Maptuner X. Application will...

RY11UNI-LOG-KIT

$479.85

I had it and it was awful. I ended up trading for the monitoring app. Seems kind of useless to be able to monitor things like air flow and MAP but not knock....what's the point in monitoring anything if you can't view the most important details of the engine?

[JESUS G]

I had it and it was awful. I ended up trading for the monitoring app. Seems kind of useless to be able to monitor things like air flow and MAP but not knock....what’s the point in monitoring anything if you can’t view the most important details of the engine?

Maptuner can log Knock... You just need to know how to read timing.


In seadoo we log , main ignition, ignition 1, 2 and 3


So when ignition drops a couple of degrees or drop very gradually , that is not knock. It's ignition correction due to engine and intake temps.

When you get 5 or more degrees down...normally that is knock...but could be also for too many reasons. Not always knock means you have a high timing, could be bad fueling, also vibrations in the prop, etc.


So it's just about to learn how to read and interpret the values in the log

[Snyper]

Maptuner can log Knock... You just need to know how to read timing.


In seadoo we log , main ignicion, ignition 1, 2 and 3


So when ignition drops a couple of degrees or drop very gradually , that is not knock. It's ignition correction due to engine and intake temps.

When you get 5 or more degrees down...normally that is knock...but could be also for too many reasons. Not always knock means you have a high timing, could be bad fueling, also vibrations in the prop, etc.


So it's just about to learn how to read and interpret the values in the log

I'm aware, but as far as the monitoring app, why isn't it available for viewing instead of a few of the useless parameters it displays? Knock is just as important as AFR and it would be nice/useful to monitor it while riding.

[JESUS G]

I’m aware, but as far as the monitoring app, why isn’t it available for viewing instead of a few of the useless parameters it displays? Knock is just as important as AFR and it would be nice/useful to monitor it while riding.

Because Bosch ECU is more complicated than that. Knock doesn't work on Bosch ECUs like it does on Vipec, Motec or any other stand alone ecu.



Here is the thing ...or what I will advise. Monitoring is to check that there is not dangerous values... so once you check AFR is "safe" you can use the log app to make a logged file, so you can adjust fuel and timing.


A logged file is a ride for 5 min aprox. then you can see and check logged file to see where and what you need to adjust.

[Merritt]

JESUS G is it possible i have wrong maptuner X app/software for my vin? My exhaust temp @80F (1740 ohms) show 165F on monitoring and logging. Hooked my old ios logger up and it reads 79.4F

[Green Hulk]

JESUS G is it possible i have wrong maptuner X app/software for my vin? My exhaust temp @80F (1740 ohms) show 165F on monitoring and logging. Hooked my old ios logger up and it reads 79.4F

His support email is [email protected]
you will get a faster answer that way.

[CMNSPAM]

im interested in this tool. the description implies that you have to buy a licence for each ski after the first one. Am i correct? if so, how much is each licence?

anyone know the max number of keys that can be programmed to a ski?

2005 Seadoo RXT

[Davrac]

MapX can hold 10keys per ski

[Rocco85]

I purchase the Maptuner and license, yesterday I connect to my rxp300 add new vehicle, and then sync to my pc, I had a massage that the vin is allready used by other user
its already programmed with other Maptuner..
unfairly I purchase my license??? That not a problem, I would use it to another ski, but I allready use the code to start my new Maptuner...
