Build up of my new 2016 FZS SVHO

[Green Hulk]

Just picked up my new Yamaha FZS. I will use this thread to show the modifications and improvements I make to the ski over time. Enjoy!

[Green Hulk]

Build up of my new 2016 FZS SVHO

Big thanks to my favorite store www.pwcperformance.com for the nice discount and getting parts out for my new FZS so quickly.


Stage 1 and 80+ mph coming soon... Stay tuned!!

[Green Hulk]

Build up of my new 2016 FZS SVHO

I just got off the water to test the Riva/V-Tech "bone stock" tune, which is the tune for skis with no modifications and it ran a solid 76-77 mph

I will soon be testing the Riva/V-Tech "Stage 1" tune with the associated stage 1 parts shown in the attached image.

I used this Riva/V-Tech MaptunerX tuning bundle package to reflash my ECU. It was extremely easy to do and only took a few minutes. These bundle packages are currently on sale in the forums online store. Link to order is here: http://www.4-tecperformance.com/inde...oducts_id=4250

https://youtu.be/XHwzKceYDKc

This test was done with a FULL tank of fuel and a 255 pound rider
Temps here right now are 79 degrees F

[Green Hulk]

Build up of my new 2016 FZS SVHO

After running 77+ mph witha bone stock ski with the "bone stock" Riva/V-Tech tune on my 2016 FZ, i decided to put the Stage 1 parts on the ski and upload the Riva/V-Tech Stage 1 tune with my MaptunerX unit and am extremely pleased with the results.

80.4 mph came very easy at only 8220 RPM. I depitched the Solas 13/20 that comes with the kit to a 13/18 being I ride in a very hot climate. The acceleration is brutal!!!
Air temps for this test were 89 degrees F and fuel was 3/4 tank.
I'm a 255 pound rider

As you can see in the GPS pic there is only 4.9 hours on this ski.

This test was with the STOCK ride plate and trim one click up from Neutral. Adding the Jim's ride plate would have yielded another 2 mph. I will test that this weekend

All of these parts and V-Tech MaptunerX system are available in this forums online store at discounted prices. The discount code is greenhulk
www.pwcperformance.com

https://youtu.be/vrqHZ1D24lI

Here's some pics of the parts I installed. Take note that I also installed the R&D dual friction washer between the pump and impeller. This makes removing the impeller in the future a breeze. I highly recommend this for all skis!

Have a look at how restrictive the intake manifold flame arrestor is (ribbon)
Doing the intake manifold upgrade is a must do for any ski.

and the BIG news.... I then put the Jim's Modified SVHO plate on my ski and gained a solid 2.2 mph.

82.6 mph with only stage 1 parts and tune and a Jim's plate. Incredible!!

https://youtu.be/E1W0t0dl0Xc

Stage 2 coming soon

[Green Hulk]

Build up of my new 2016 FZS SVHO

Guys, these Jim's modified ride plates are absolutely incredible. Just bolting on this ride plate with no other modifications yielded 2.2 mph gain on my ski


Before the plate it ran 80.4

https://youtu.be/vrqHZ1D24lI

I then put the Jim's Modified SVHO plate on my ski and gained a solid 2.2 mph.

82.6 mph with only stage 1 parts and tune and a Jim's plate. Incredible!!

https://youtu.be/E1W0t0dl0Xc

The best news is this ride plate modification is available in this forums online store and it's only $285. That's a cheap 2 mph gain!

Abailable in the store here


http://www.4-tecperformance.com/inde...oducts_id=2553

[Green Hulk]

Build up of my new 2016 FZS SVHO

These GRF catch cans have been a huge hit with the Sea Doo crowd so I had GRF make some for the 2012+ Yamaha skis.

I just installed and tested mine. Look, fit and finish are perfect. Running a catch can on a supercharged ski is always a great idea as it prevents the engine from re breathing oily crankcase vapors. As you are aware, the crankcase breather hose is plumbed back to the stock air intake. Those oily vapors can and will coat your intercooler over time making it less efficient. Also, your engine re breathing crankcase fumes lowers the knock rating of your fuel.

Yes, Riva Makes a cheaper crankcase vent as shown here

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=1953

but the catch can takes things to a new level of "nice".
It's a very nice piece to have and you can drain it easily from the pet cock to check tabs on the health of your engine to make sure you aren't pushing an abundance of oil through the crank vent.

These are already in production and ready to ship

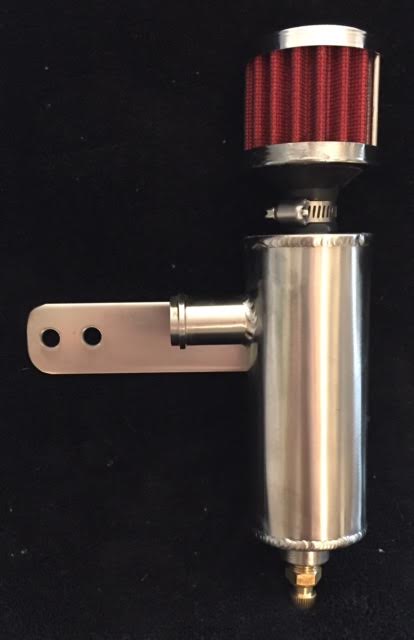

GRF Stainless Steel Catch Can for 2012 and newer SHO/SVHO Yamaha Waverunners GRF Racing stainless steel catch can. Constructed of high grade 316 stainless steel. It mounts using your rear engine hook bolts and fits under the...

GRF yam catch can

$114.95

[Green Hulk]

Okay just got back and tested my R&D grate right out the pack.
I first made several runs with the stock grate and pulled of consistent 83.3 mph runs.

I immedately swapped out the R&D grate and made consistent passes of 83.9 mph. Tried like hell, but could not get over the hump to 84 mph.

All in all, I'm pleased with .6 mph gain. The best part about it is I had a slight bounce with the stock grate. With the R&D grate the ski smoothed out completely.

[Green Hulk]

Build up of my new 2016 FZS SVHO

I finally got 25 hours on my ski and must say it's been a lot of fun and it's performed flawlessly with the Riva/V-tech Stage 2 tune and Stage 2 kit parts. Looking forward to enjoying many more trouble free hours. Maybe upgrade to stage 3 soon?

I'm using the Amsoil 10W40 Marine oil in this ski just as I have on all my others. This oil has been fantastic! This is the oil I use

http://www.amsoil.com/shop/by-product/motor-oil/4-stroke/10w-40-synthetic-formula-4-stroke-marine-oil/?zo=1499968&page=%2fstorefront%2fwcf.aspx

[Green Hulk]

I just make this thread to show the improvements I made to my ski since I purchased it. The ski currently has the Riva/V-Tech stage 2 tune and parts on it and runs 84 mph in this brutal south Louisiana heat.

Thinking about upgrading to stage 3 soon and taking this thing to the next level

[Rick_dyson]

Wow that's impressive Jerry , little money for huge gains compared to the older ski's ... The amount I've chucked in to a 09 sho just to break 80mph ha

[need for speed]

Great thread can you price everything exactly installed with prevailing labor cost so we know how many $$ per 1 MPH gain

[Green Hulk]

Great thread can you price everything exactly installed with prevailing labor cost so we know how many $$ per 1 MPH gain

Here you go! Here's a list to every part on my ski with links to the items in this forums online store.

MaptunerX tuning bundle package on sale at $944.87

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=180&products_id=4250

GRF Catch Can $114.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=4928

Jim's Ride Plate modification to stock ride plate $250
https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=78_80&produ cts_id=2553




When you buy in this forums online store and use the discount code: greenhulk
you will save 10% off the listed price of the below items

Riva power filter $299.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=741

Riva intake manifold upgrade kit $39.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=741

Riva pro series cooling kit $259.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=2579

Riva SVHO power cooler kit $1049.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=2580

RIVA/HKS blow off valve $299.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_114&products_id=1181

Solas SVHO 13/20 impeller, depitched to 13/18 $329.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_96&products_id=2581

R&D intake grate $299.95

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_94&products_id=3129

R&D pump seal kit for intake grate $73.42

https://www.4-tecperformance.com/index.php?main_page=product_info&cPath=16_82_94&products_id=2499

[incognito]

No exhaust?

[Green Hulk]

No exhaust?

bone stock exhaust for now, but will end up doing the Riva waterbox with rear exhaust.

[4-keeps]

Awesome Jerry!
